Truck surveillance system rear camera and truck parking assist

Description
Specifications

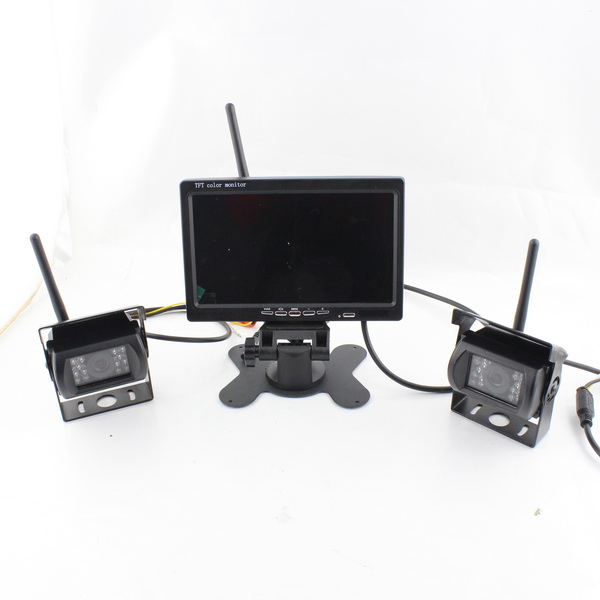

2.4G Wireless Digital 4 Channel CCTV Monitor recording
Automatic work when reversing/ reversing monitoring
4 channel cameras recording

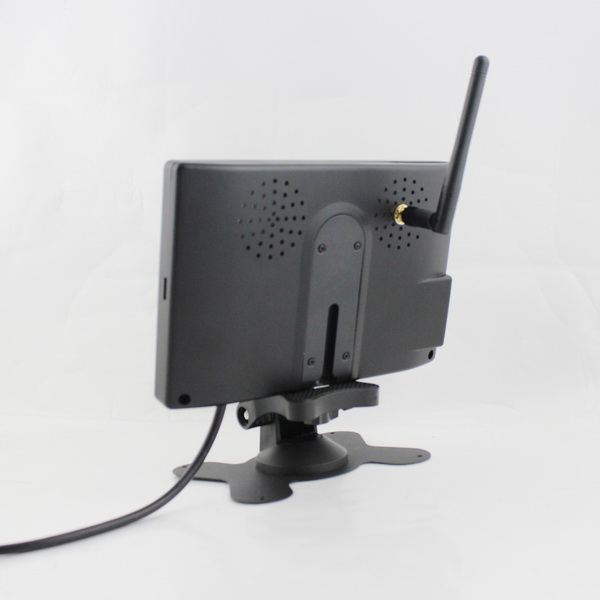

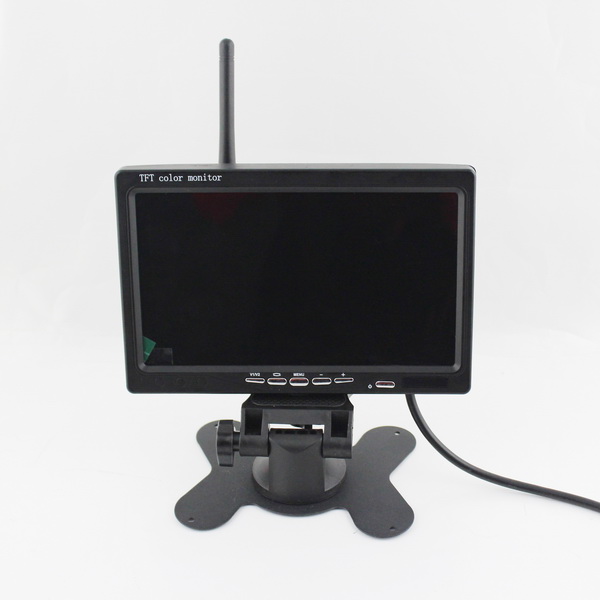

7 inch 16:9 screen HD monitor

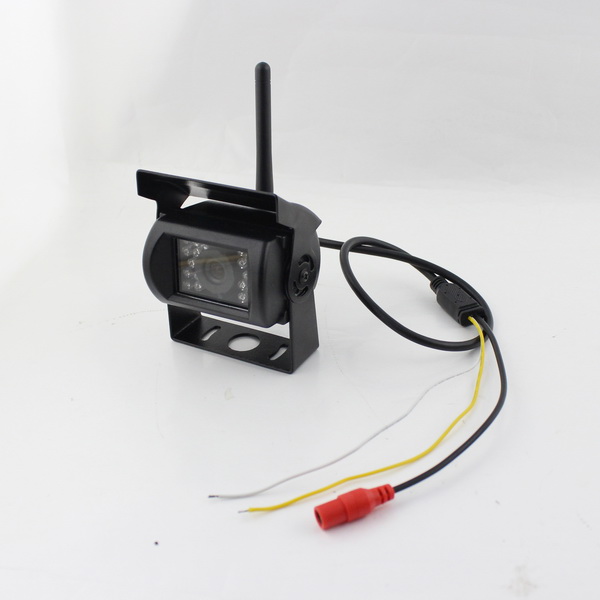

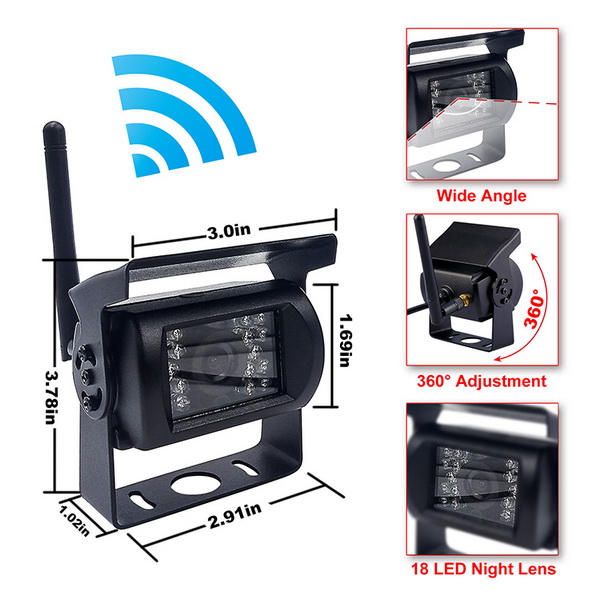

4 cmos cameras
4 channel av input
monitor resolution:800*480
cameras:648*488
2.4G wireless wifi connected monitor with cameras.
Wifi distance support 80-100meter
SD card support 128GB max

Wirelss Wifi 7inch Monitor truck/Bus CCTV with

4 cameras recording & reversing monitoring support

Wirelss Wifi 7inch Monitor truck/Bus CCTV with

4 cameras recording & reversing monitoring support

DC Characteristics
POWER SUPPLY	+9~+30V
Current Consumption	TYPE:300mA, Max.380mA
Environmental Specification
Operating Temperature	-10~+60 ºC
Storing Temperature	-30~+85 ºC
Operating humidity	85%RH
BASEBANGD SPEC.
POWER ON	2S Max.
Latency	120mS Max.
Resolution	VGA：640X480/D1：720X480
Frame Rate	VGA:30f/s/D1: 25f/s
Video Code	MPEG4
Video in System	PAL/NTSC Auto detection
Voice Sample Rate	16KHz/12BIT ADC ADPCM/PCM
Voice Frequency	20Hz~20KHz
ID/BIT	Pairing/22(4KK)
SYSTEM Architecture	RISC(32Bit) SOC
RF SPEC.
Operation Frequency	2400 ~ 2483.5MHz^*
RF Impedance	50Ω, Typ.
Voltage Standing Wave Ratio	2:1
Output Power	20dBm with Power control
RF Bit Rate	4Mbps
Modulation	FSK/GFSK
Spread Spectrum	FHSS
Overlapping Hopping Channel	125
Hopping Rate	1200/S
CRC Check Bit	16
Line of Sight Range	>200M

2.4G Wireless Digital 4 Channel CCTV Monitor recording cameras

PZ607-W-D4
